Szczegóły Produktu:
|
| PRZEMYSŁ: | elektrownie | Rodzaj: | Pojedyncza wiosna |
|---|---|---|---|
| Pakiet: | Standardowy pakiet eksportowy | Opieczętowanie: | FKM |
| Usługa: | Niestandardowe usługi OEM | Zgodność: | Pasuje do większości standardowych modeli pomp wodnych |
| Medium robocze: | Woda, olej i media słabokorozyjne | Liczba wierszy: | Podwójny rząd |
| Próbka: | Może zapewnić | ||

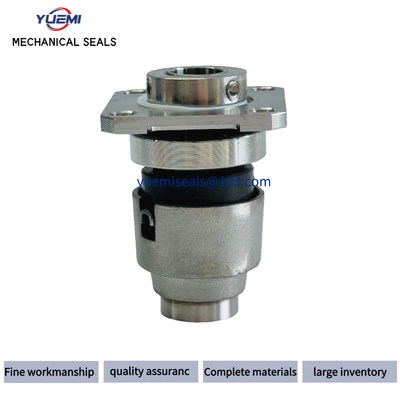

| Podkreślić: | Wieloetapowy wkład pompy z mechaniczną uszczelnieniem,uszczelnienie mechaniczne TPH,Taiwan Oi Walrus pompy uszczelnienie mechaniczne |
||
Siedzenia stacjonarne Wymiar Dane (mm)
| Rodzaj wału | d6 | d7 | G4 /G13 | BO | BO/BP | Ciśnienie krwi | G4 | G6/G60 | G9 | G13 | |||||
| d11 | d12 | l2 | l4 | l5 | 12 | 14 | 10 | 28 | l8 | l9 | 11 | 13 | |||
| 10 | 17 | 21 | 15.5 | 19.2 | 7.5 | 6.6 | 7.5 | 6.6 | 17.5 | 10.0 | 9.0 | 7.1 | |||
| 12 | 19 | 23 | 17.5 | 21.6 | 6.5 | 5.6 | 7.5 | 6.6 | 17.5 | 10.0 | 10.0 | 7.6 | |||
| 14 | 21 | 25 | 20.5 | 24.6 | 12.8 | 12.0 | 18.5 | 6.5 | 5.6 | 7.5 | 6.6 | 17.5 | 10.0 | 10.0 | 7.6 |
| 15 | 20.5 | 24.6 | 12.0 | 7.5 | 6.6 | 7.5 | 17.5 | 10.0 | 11.0 | 8.6 | |||||
| 16 | 23 | 27 | 22.0 | 28.0 | 12.8 | 12.0 | 18.5 | 8.5 | 7.5 | 7.5 | 6.6 | 17.5 | 10.0 | 11.5 | 9.0 |
| 18 | 27 | 33 | 24.0 | 30.0 | 14.5 | 13.5 | 20.5 | 9.0 | 8.0 | 8.5 | 7.5 | 19.5 | 11.5 | 12.5 | 10.0 |
| 20 | 29 | 35 | 29.5 | 35.0 | 14.5 | 13.5 | 20.5 | 8.5 | 7.5 | 8.5 | 7.5 | 19.5 | 11.5 | 12.5 | 9.5 |
| 22 | 31 | 37 | 29.5 | 35.0 | 14.5 | 13.5 | 20.5 | 8.5 | 7.5 | 8.5 | 7.5 | 19.5 | 11.5 | 12.5 | 9.5 |
| 24 | 33 | 39 | 32.0 | 38.0 | 14.3 | 13.3 | 20.3 | 8.5 | 7.5 | 8.5 | 7.5 | 19.5 | 11.5 | 12.5 | 9.5 |
| 25 | 34 | 40 | 32.0 | 38.0 | 14.0 | 13.0 | 20.0 | 8.5 | 7.5 | 8.5 | 7.5 | 19.5 | 11.5 | 12.5 | 9.5 |
| 26 | 34.0 | 40.0 | 9.0 | 8.0 | 8.5 | 7.5 | 19.5 | 11.5 | 13.0 | 10.0 | |||||
| 28 | 37 | 43 | 36.0 | 42.0 | 13.5 | 12.5 | 19.5 | 10.0 | 9.0 | 8.5 | 7.5 | 19.5 | 11.5 | 14.0 | 11.0 |
| 30 | 39 | 45 | 39.2 | 45.0 | 13.0 | 12.0 | 19.0 | 11.5 | 10.5 | 8.5 | 7.5 | 19.5 | 11.5 | 14.0 | 11.0 |
| 32 | 42 | 48 | 42.2 | 48.0 | 13.0 | 12.0 | 19.0 | 11.5 | 10.5 | 8.5 | 7.5 | 19.5 | 11.5 | 14.0 | 11.0 |
| 33 | 42 | 48 | 44.2 | 50.0 | 13.0 | 12.0 | 19.0 | 12.0 | 10.5 | 8.5 | 7.5 | 19.5 | 11.5 | 14.5 | 11.5 |
| 35 | 44 | 50 | 46.2 | 52.0 | 13.0 | 12.0 | 19.0 | 12.0 | 11.0 | 8.5 | 7.5 | 19.5 | 11.5 | 14.5 | 11.5 |
| 38 | 49 | 56 | 49.2 | 55.0 | 14.0 | 13.0 | 20.0 | 11.3 | 10.3 | 10.0 | 9.0 | 22.0 | 14.0 | 14.5 | 11.5 |
| 40 | 51 | 58 | 52.2 | 58.0 | 14.0 | 13.0 | 20.0 | 11.8 | 10.8 | 10.0 | 9.0 | 22.0 | 14.0 | 14.5 | 11.5 |
| 42 | 53.3 | 62.0 | 14.0 | 13.0 | 13.2 | 12.0 | 10.0 | 9.0 | 22.0 | 14.0 | 17.0 | 14.3 | |||
| 43 | 54 | 61 | 53.3 | 62.0 | 14.0 | 13.0 | 20.0 | 13.2 | 12.0 | 10.0 | 9.0 | 22.0 | 14.0 | 17.0 | 14.3 |
| 45 | 56 | 63 | 55.3 | 64.0 | 14.0 | 13.0 | 20.0 | 12.8 | 11.6 | 10.0 | 9.0 | 22.0 | 14.0 | 17.0 | 14.3 |
| 48 | 59 | 66 | 59.7 | 68.4 | 14.0 | 13.0 | 20.0 | 12.8 | 11.6 | 10.0 | 9.0 | 22.0 | 14.0 | 17.0 | 14.3 |
| 50 | 62 | 70 | 60.8 | 69.3 | 14.5 | 13.5 | 20.5 | 12.8 | 11.6 | 10.5 | 9.5 | 23.0 | 15.0 | 17.0 | 14.3 |
| 53 | 65 | 73 | 63.8 | 72.3 | 14.5 | 13.5 | 20.5 | 13.5 | 12.3 | 12.0 | 11.0 | 23.0 | 15.0 | 17.0 | 14.3 |
| 55 | 67 | 75 | 66.5 | 75.4 | 14.5 | 13.5 | 20.5 | 14.5 | 13.3 | 12.0 | 11.0 | 23.0 | 15.0 | 18.0 | 15.3 |
| 58 | 70 | 78 | 69.5 | 78.4 | 14.2 | 13.5 | 20.5 | 14.5 | 13.3 | 12.0 | 11.0 | 23.0 | 15.0 | 18.0 | 15.3 |
| 60 | 72 | 80 | 71.5 | 80.4 | 14.2 | 13.5 | 20.5 | 14.5 | 13.3 | 12.0 | 11.0 | 23.0 | 15.0 | 18.0 | 15.3 |
| 63 | 75 | 83 | 74.5 | 83.4 | 14.2 | 13.5 | 20.5 | 14.2 | 13.3 | 12.0 | 11.0 | 23.0 | 15.0 | 18.0 | 15.3 |
| 65 | 77 | 85 | 76.5 | 85.4 | 14.2 | 13.5 | 20.5 | 14.2 | 13.0 | 12.0 | 11.0 | 23.0 | 15.0 | 18.0 | 15.3 |
| 68 | 81 | 90 | 82.7 | 91.5 | 14.2 | 13.5 | 20.5 | 14.9 | 13.7 | 12.5 | 11.3 | 26.0 | 18.0 | 19.0 | 16.0 |
| 70 | 83 | 92 | 83.0 | 92.0 | 15.2 | 14.5 | 21.5 | 14.2 | 13.0 | 12.5 | 11.3 | 26.0 | 18.0 | 18.0 | 15.3 |
| 75 | 88 | 97 | 90.2 | 99.0 | 15.2 | 14.5 | 21.5 | 15.2 | 14.0 | 12.5 | 11.3 | 26.0 | 18.0 | 18.0 | 15.3 |
| 80 | 95 | 105 | 95.2 | 104.0 | 15.7 | 15.0 | 22.0 | 16.2 | 15.0 | 13.0 | 12.0 | 26.2 | 18.2 | 19.0 | 16.3 |
| 85 | 100 | 110 | 100.2 | 109.0 | 15.7 | 15.0 | 22.0 | 16.0 | 14.8 | 15.0 | 14.0 | 26.2 | 18.2 | 19.0 | 16.3 |
| 90 | 105 | 115 | 105.2 | 114.0 | 15.7 | 15.0 | 22.0 | 16.0 | 14.8 | 15.0 | 14.0 | 26.2 | 18.2 | 19.0 | 16.3 |
| 95 | 110 | 120 | 111.6 | 120.3 | 15.7 | 15.0 | 22.0 | 17.0 | 15.8 | 15.0 | 14.0 | 25.2 | 17.2 | 20.0 | 17.3 |
| 100 | 115 | 125 | 114.5 | 123.3 | 15.7 | 15.0 | 22.0 | 17.0 | 15.8 | 15.0 | 14.0 | 25.2 | 17.2 | 20.0 | 17.3 |
Pierścień grafitowy/Ograniczone właściwości:Posiada wiele zalet, na przykład dobre właściwości samosmarowania, odporność na korozję, niższy współczynnik tarcia,wyższy współczynnik przewodności cieplnej, niższy współczynnik rozszerzenia termicznego itp.
Karbid krzemowy/Ograniczone właściwości: jest wysoce odporny na korozję i zużycie, ma wyższą wytrzymałość mechaniczną, dobrą odporność na podwyższoną temperaturę,i dobre właściwości smaroweTo najlepszy materiał do grafitu.
